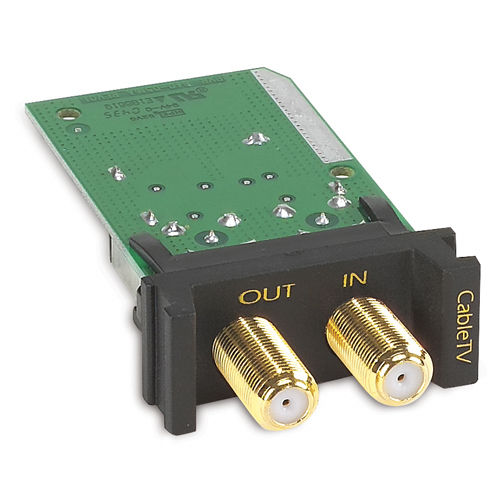

REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE

PVR

REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE

Includes: User Manual

Liên hệ
Hotline: 02437920828

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web

Output

  • Number of Outlets
    1.0

Surge Protection and Filtering

  • Data Line Protection
    Cable modem / Video protection, Co-axial Video / Cable protection
  • Data Lines Protected
    (multi-line only)
    1
  • ts_nm_surge_response
    1ns
  • Peak Current Common Mode
    0.5kAmps
  • Peak Current Normal Mode
    0.2kAmps

Physical

  • Maximum Height
    44mm , 4.4CM
  • Maximum Width
    19mm , 1.9CM
  • Maximum Depth
    69mm , 6.9CM
  • Net Weight
    0.06KG
  • Shipping weight
    0.28KG
  • Shipping Height
    99mm , 9.9CM
  • Shipping Width
    33mm , 3.3CM
  • Shipping Depth
    95mm , 9.5CM
  • Color
    Black
  • Master Carton Units
    96.0
  • SCC Codes
    3073130421719 1

Environmental

  • Operating Temperature
    -15 - 45 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-3000meters

Conformance

  • Approvals
    UL 497B, UL Recognized
  • Standard warranty
    Lifetime

Sustainable Offer Status

  • RoHS
    Compliant
  • Other Environmental Compliance
    China RoHS
