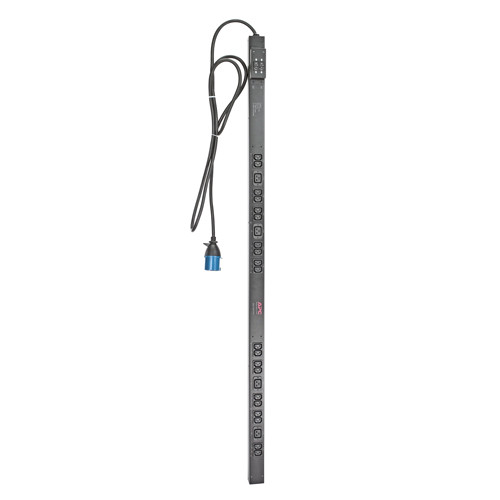

Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

AP7553

Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

Includes: Installation Guide , Rack Mounting Brackets , Toolless Mounting Kit

Liên hệ
Hotline: 02437920828

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web

Output

  • Nominal Output Voltage
    230V
  • Maximum Total Current Draw
    32
  • Output Connections
    (4) IEC 320 C19 (Battery Backup)
    (20) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage
    200V , 208V , 230V
  • Input frequency
    47 - 63 Hz
  • Input Connections
    IEC 309 32A 2P+E
  • Cord Length
    3.05meters
  • Number of Power Cords
    1
  • Load Capacity
    7360VA
  • Maximum Input Current
    32A

Physical

  • Maximum Height
    1619mm , 161.9CM
  • Maximum Width
    56mm , 5.6CM
  • Maximum Depth
    44mm , 4.4CM
  • Net Weight
    5.57KG
  • Shipping weight
    6.48KG
  • Shipping Height
    2121mm , 212.1CM
  • Shipping Width
    152mm , 15.2CM
  • Shipping Depth
    127mm , 12.7CM
  • Color
    Black

Environmental

  • Operating Temperature
    0 - 45 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters

Conformance

  • Approvals
    CE, VDE
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
  • Other Environmental Compliance
    China RoHS
