RACK ATS, 10A/230V, 12A/208V, C14 IN, (12) C13 OUT

AP7721

Liên hệ
Hotline: 02437920828

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web

Output

  • Overload Protection
    No
  • Maximum Total Current Draw
    10

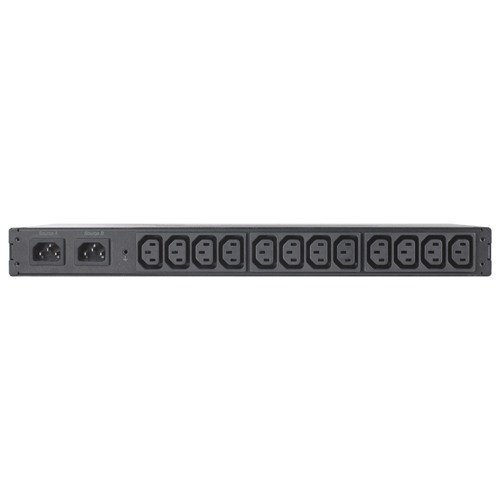

  • Output Connections
    (12) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage
    200V , 208V , 230V
  • Input frequency
    47 - 63 Hz
  • Input Connections
    IEC-320 C14
  • Maximum Input Current
    10A
  • Maximum Line Current
    10A

Physical

  • Maximum Height
    44mm , 4.4CM
  • Maximum Width
    432mm , 43.2CM
  • Maximum Depth
    229mm , 22.9CM
  • Rack Height
    1U
  • Net Weight
    3.93KG
  • Shipping weight
    5.7KG
  • Shipping Height
    114mm , 11.4CM
  • Shipping Width
    600mm , 60.0CM
  • Shipping Depth
    349mm , 34.9CM
  • Color
    Black

Environmental

  • Operating Temperature
    -5 - 45 °C
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    5 - 95 %
  • Storage Elevation
    0-15000meters

Conformance

  • Approvals
    EN 55022 Class A, FCC Part 15 Class A
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
  • Battery Directive
    Compliant
  • Other Environmental Compliance
    China RoHS
