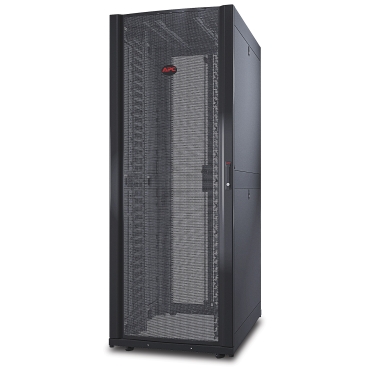

AR3140 NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides Black

APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1070D mm with Casters, Feet, Vertical Cable Managers, Side Panels [TAA]

Liên hệ
Hotline: 0942089168

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web



Overview

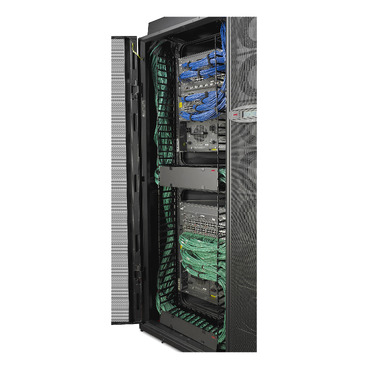

Presentation NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Main
Product or Component Type Rack enclosure
Number of rack unit 42U
Rack Width 19"
Permanent permissible load 2250 lb(US) (1020.6 kg) dynamic
3750 lb(US) (1701.0 kg) static
Provided equipment Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting Hardware
Pre-installed casters
Side Panels
Vertical cable managers
Complementary
Mounting Mode Not rack-mountable
Minimum Mounting Depth 11.0 in (279.4 mm)
Maximum Mounting Depth 32.3 in (819.2 mm)
Color Black
Marking 14 gauge EIA mounting rail
16 gauge front door
16 gauge post
16 gauge rear door
18 gauge roof
18 gauge side panels
Height 78.4 in (1991 mm)
Width 29.5 in (750 mm)
Depth 42.1 in (1070 mm)
Net Weight 343.81 lb(US) (155.95 kg)
Environmental
Standards UL 2416
UL 60950-1
EIA-310E
Ordering and shipping details
GTIN 731304275572
Country of origin PH
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 83.4 in (211.8 cm)
Package 1 Width 33.50 in (85.09 cm)
Package 1 Length 45.5 in (115.6 cm)
Package weight(Lbs) 370.77 lb(US) (168.18 kg)
Compliance
Compliance TAA Compliant
BAA Compliant via COTS
Contractual warranty
Warranty (in months) 60
