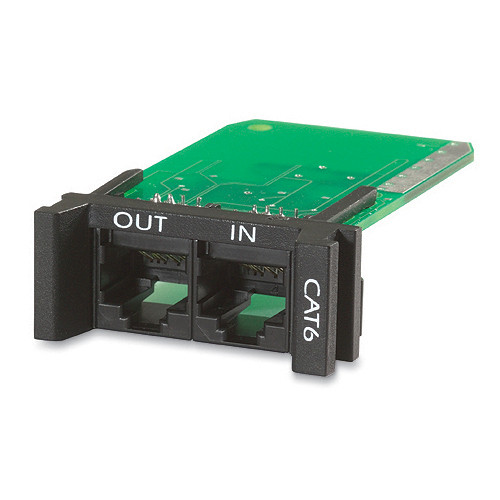

APC Surge Module for CAT6 or CAT5/5e Network Line, Replaceable, 1U, use with PRM4 or PRM24 Chassis

PNETR6

APC Surge Module for CAT6 or CAT5/5e Network Line, Replaceable, 1U, use with PRM4 or PRM24 Chassis

Protects an ethernet data port from damaging transients. Supports Cat5, Cat5E and Cat6 cabling standards. Compatible with Power Over Ethernet (POE) and network speeds up to 10GbE (10GigE).

Includes: User Manual

Giá: 380.000 đ
Hotline: 02437920828

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web

Output

  • Number of Outlets
    1.0

Surge Protection and Filtering

  • Data Line Protection
    RJ45 10/100/1000 Base-T Ethernet protection
  • Data Lines Protected
    (multi-line only)
    1
  • Peak Current Common Mode
    0.25kAmps
  • Peak Current Normal Mode
    0.2kAmps

Physical

  • Maximum Height
    44mm , 4.4CM
  • Maximum Width
    19mm , 1.9CM
  • Maximum Depth
    69mm , 6.9CM
  • Rack Height
    1U
  • Net Weight
    0.02KG
  • Shipping weight
    0.04KG
  • Shipping Height
    99mm , 9.9CM
  • Shipping Width
    33mm , 3.3CM
  • Shipping Depth
    95mm , 9.5CM
  • Color
    Black
  • Master Carton Dimensions (Length x Width x Height)
    638 x 413 x 207mm
  • Master Carton Units
    96.0
  • Master Carton Weight
    6.01
  • SCC Codes
    3073130421718 4

Environmental

  • Operating Temperature
    -15 - 45 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-3000meters

Conformance

  • Approvals
    UL 497B, UL Recognized
  • Standard warranty
    Lifetime
