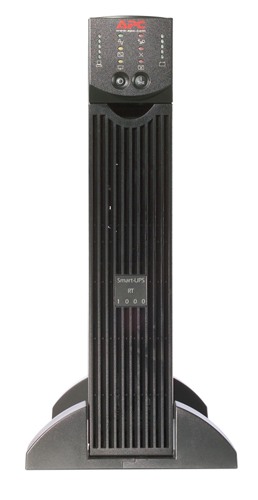

APC Smart-UPS RT 1000VA 230V
SURT1000XLI
APC Smart-UPS RT 1000VA 230V
Includes: CD with software , Smart UPS signalling RS-232 cable , User Manual
Liên hệ
Giao hàng toàn quốc
Thanh toán khi nhận hàng
Hoàn 100% tiền nếu hàng không đúng như web
Output
-
Output power capacity700Watts / 1.0 kVA
-
Max Configurable Power (Watts)700Watts / 1.0 kVA
-
Nominal Output Voltage230V
-
Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
-
Output Voltage DistortionLess than 3%
-
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz user adjustable +/- 0.1
-
Other Output Voltages220, 240
-
Load Crest Factor3 : 1
-
TopologyDouble Conversion Online
-
Waveform typeSine wave
-

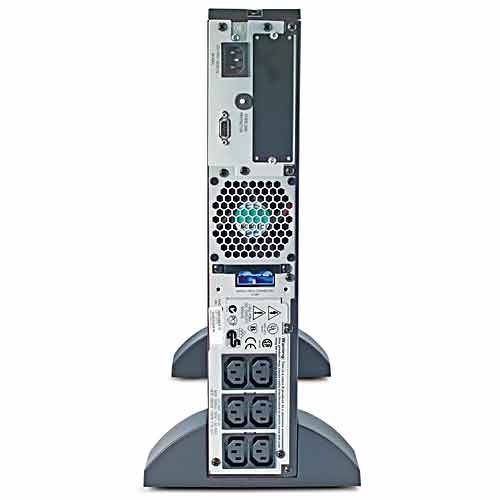

Output Connections(6) IEC 320 C13 (Battery Backup)(2) IEC Jumpers (Battery Backup)
-
BypassBuilt-in Bypass
Input
-
Nominal Input Voltage230V
-
Input frequency50/60 Hz +/- 5 Hz (auto sensing)
-
Input ConnectionsIEC-320 C14
-
Input voltage range for main operations160 - 280V
-
Input voltage adjustable range for mains operation100 - 280V
-
Number of Power Cords1
-
Other Input Voltages220, 240
Batteries & Runtime
-
Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
-
Included Battery Modules1
-
Typical recharge time3hour(s)
-
Replacement BatteryRBC31
-
Expected Battery Life (years)3 - 5
-
RBC Quantity1
-
Extendable Run Time1
-
Extended Run OptionsAPC-Smart-UPS-RT-1000VA-230V
-
RuntimeView Runtime GraphView Runtime Chart
-
EfficiencyView Efficiency Graph
Communications & Management
-
Interface Port(s)DB-9 RS-232 , SmartSlot
-
Control panelLED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
-
Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
-
Emergency Power Off (EPO)Optional
-
Available SmartSlot™ Interface Quantity1
Surge Protection and Filtering
-
Surge energy rating420Joules
-
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
-
Maximum Height432mm , 43.2CM
-
Maximum Width85mm , 8.5CM
-
Maximum Depth483mm , 48.3CM
-
Rack Height2U
-
Net Weight23.0KG
-
Shipping weight27.8KG
-
Shipping Height286mm , 28.6CM
-
Shipping Width630mm , 63.0CM
-
Shipping Depth594mm , 59.4CM
-
ColorBlack
-
Master Carton Units1.0
-
Units per Pallet6.0
Environmental
-
Operating Temperature0 - 40 °C
-
Operating Relative Humidity0 - 95% non-condensing %
-
Operating Elevation0-3000meters
-
Storage Temperature-20 - 50 °C
-
Storage Relative Humidity0 - 95% non-condensing %
-
Storage Elevation0-15000meters
-
Audible noise at 1 meter from surface of unit50.0dBA
-
Online thermal dissipation324.0BTU/hr
-
Protection ClassIP 20
Conformance
-
ApprovalsC-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE
-
Standard warranty2 years repair or replace, optional on-site warranties available, optional extended warranties available
Sustainable Offer Status
-
RoHSCompliant
-
REACHREACH: Contains No SVHCs
-
PEPAvailable in Documentation tab
-
EOLIAvailable in Documentation tab
