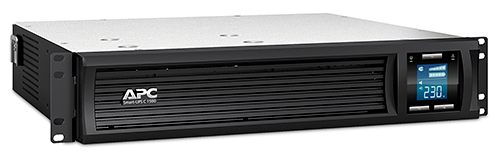

APC Smart-UPS C 2000VA LCD RM 2U 230V

SMC2000I-2U

APC Smart-UPS C 2000VA LCD RM 2U 230V

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting brackets , USB cable

Giá: 11.680.000 đ
Hotline: 02437920828

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web

Output

  • Output power capacity
    1.3 KWatts / 2.0 kVA
  • Max Configurable Power (Watts)
    1.3 KWatts / 2.0 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Distortion
    Less than 5%
  • Output Frequency (sync to mains)
    50 Hz
  • Topology
    Line Interactive
  • Waveform type
    Sine wave

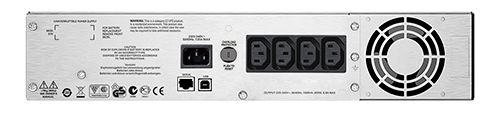

  • Output Connections
    (6) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
  • Transfer Time
    8ms typical : 10 ms maximum

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C20
  • Input voltage range for main operations
    180 - 287V
  • Number of Power Cords
    1

Batteries & Runtime

  • Battery type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time
    3hour(s)
  • Replacement Battery
    APCRBC133
  • Expected Battery Life (years)
    3 - 5
  • RBC Quantity
    1
  • Runtime
    View Runtime Graph
    View Runtime Chart

Communications & Management

  • Interface Port(s)
    USB

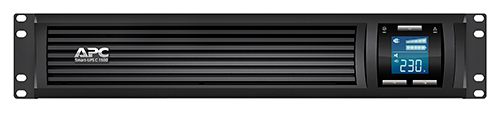

  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO)
    --

Surge Protection and Filtering

  • Surge energy rating
    300Joules
  • Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    89mm , 8.9CM
  • Maximum Width
    480mm , 48.0CM
  • Maximum Depth
    470mm , 47.0CM
  • Rack Height
    2U
  • Net Weight
    26.2KG
  • Shipping weight
    30.16KG
  • Shipping Height
    250mm , 25.0CM
  • Shipping Width
    590mm , 59.0CM
  • Shipping Depth
    600mm , 60.0CM
  • Color
    Black
  • Units per Pallet
    16.0

Environmental

  • Operating Temperature
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    42.0dBA
  • Online thermal dissipation
    81.0BTU/hr

Conformance

  • Approvals
    C-tick, CE, EAC, GOST, GS Mark, IRAM, SABS, VDE
  • Equipment protection policy
    Lifetime : $150000
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
