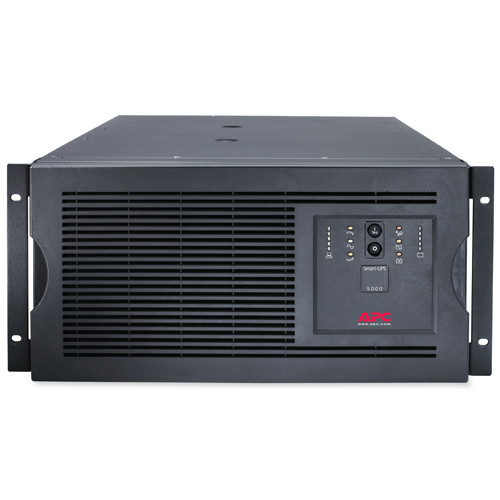

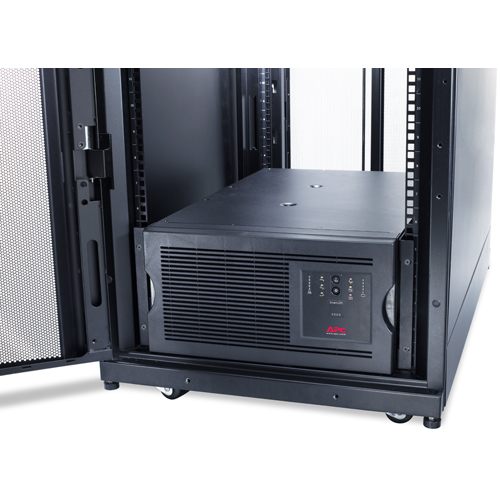

APC Smart-UPS 5000VA 230V Rackmount/Tower
SUA5000RMI5U
APC Smart-UPS 5000VA 230V Rackmount/Tower
Includes: CD with software , Documentation CD , Installation Guide , Rack mounting hardware , Rack Mounting support rails , Smart UPS signalling RS-232 cable , User Manual , Web/SNMP Management Card
Liên hệ
Giao hàng toàn quốc
Thanh toán khi nhận hàng
Hoàn 100% tiền nếu hàng không đúng như web
Output
-
Output power capacity4.0 KWatts / 5.0 kVA
-
Max Configurable Power (Watts)4.0 KWatts / 5.0 kVA
-
Nominal Output Voltage230V
-
Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
-
Efficiency at Full Load96.0 %
-
Output Voltage DistortionLess than 5% at full load
-
Output Frequency (sync to mains)47 - 53 Hz for 50 Hz nominal
-
Other Output Voltages220, 240
-
TopologyLine Interactive
-
Waveform typeSine wave
-

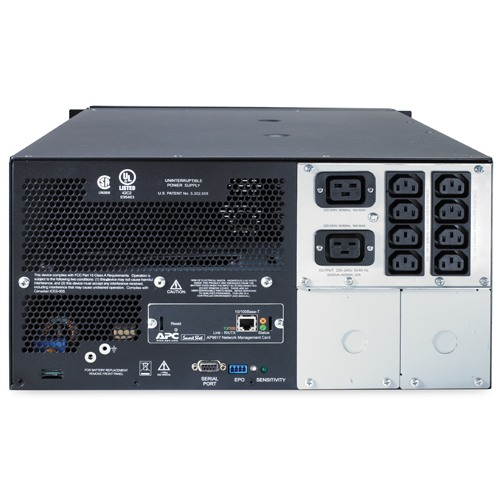

Output Connections(4) IEC Jumpers (Battery Backup)(2) IEC 320 C19 (Battery Backup)(8) IEC 320 C13 (Battery Backup)
-
Transfer Time2ms typical : 4ms maximum
Input
-
Nominal Input Voltage230V
-
Input frequency50/60 Hz +/- 3 Hz (auto sensing)
-
Input ConnectionsHard Wire 3-wire
-
Input voltage range for main operations160 - 286V
-
Input voltage adjustable range for mains operation151 - 302V
-
Efficiency at Full Load96.0 %
Batteries & Runtime
-
Battery typeVRLA
-
Typical recharge time3hour(s)
-
Replacement BatteryRBC55
-
Expected Battery Life (years)3 - 5
-
RBC Quantity2
-
RuntimeView Runtime GraphView Runtime Chart
Communications & Management
-
Interface Port(s)DB-9 RS-232 , SmartSlot
-
Pre-Installed SmartSlot™ CardsAP9630
-
Control panelLED status display with On Line : On Battery : Replace Battery and Overload indicators
-
Audible AlarmAudible and visible alarms : configurable delays
Surge Protection and Filtering
-
Surge energy rating480Joules
-
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
-
Maximum Height222mm , 22.2CM
-
Maximum Width483mm , 48.3CM
-
Maximum Depth660mm , 66.0CM
-
Rack Height5U
-
Net Weight97.73KG
-
Shipping weight106.82KG
-
Shipping Height635mm , 63.5CM
-
Shipping Width610mm , 61.0CM
-
Shipping Depth762mm , 76.2CM
-
ColorBlack
-
Master Carton Units1.0
-
Units per Pallet4.0
Environmental
-
Operating Temperature0 - 40 °C
-
Operating Relative Humidity0 - 95 %
-
Operating Elevation0-3000meters
-
Storage Temperature-15 - 45 °C
-
Storage Relative Humidity0 - 95 %
-
Storage Elevation0-15000meters
-
Audible noise at 1 meter from surface of unit53.0dBA
-
Online thermal dissipation430.0BTU/hr
Conformance
-
ApprovalsC-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE
-
Equipment protection policy--
-
Standard warranty2 years repair or replace
Sustainable Offer Status
-
RoHSCompliant
-
REACHREACH: Contains No SVHCs
-
PEPAvailable in Documentation tab
-
EOLIAvailable in Documentation tab
-
Battery DirectiveCompliant
-
Other Environmental ComplianceChina RoHS
