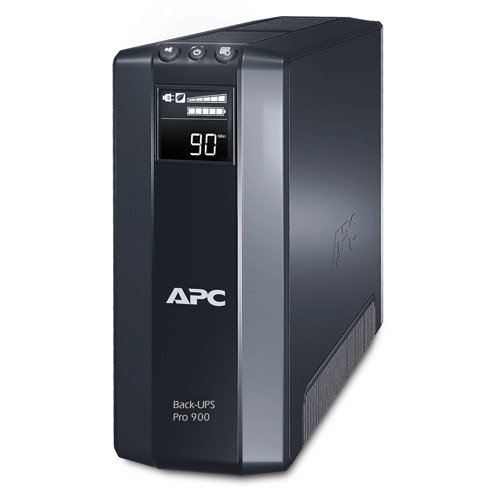

APC Power-Saving Back-UPS Pro 900, 230V

BR900GI

APC Power-Saving Back-UPS Pro 900, 230V

Includes: CD with software , Qty 1- Detachable IEC Power Cord , USB cable , User Manual , Warranty card

Liên hệ
Hotline: 02437920828

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web

Output

  • Output power capacity
    540Watts / 900VA
  • Max Configurable Power (Watts)
    540Watts / 900VA
  • Nominal Output Voltage
    230V
  • Output Frequency (sync to mains)
    50/60Hz +/- 3 Hz
  • Output Frequency (not synced)
    50/60 Hz +/-1 Hz
  • Load Crest Factor
    3 : 1
  • Topology
    Line Interactive
  • Waveform type
    Stepped approximation to a sinewave

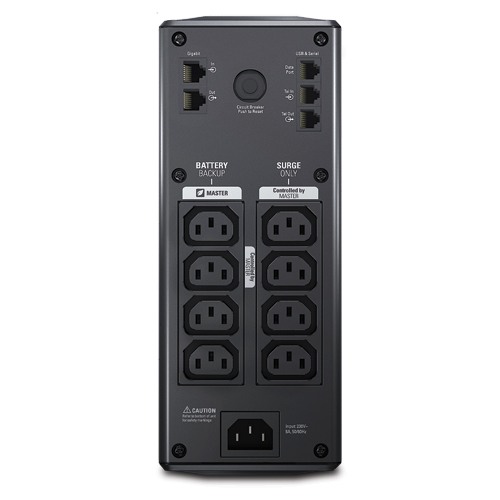

  • Output Connections
    (4) IEC 320 C13 (selector_surgetitle)
    (2) IEC Jumpers (Battery Backup)
    (4) IEC 320 C13 (Battery Backup)
  • Transfer Time
    8ms typical : 10 ms maximum
  • Bypass
    Built-in Bypass

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C14
  • Input voltage range for main operations
    176 - 294V
  • Input voltage adjustable range for mains operation
    156 - 300V
  • Number of Power Cords
    1
  • Maximum Input Current
    8.0A

Batteries & Runtime

  • Battery type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time
    8hour(s)
  • Replacement Battery
    APCRBC123
  • Expected Battery Life (years)
    3 - 5
  • RBC Quantity
    1
  • Runtime
    View Runtime Graph
    View Runtime Chart
  • Efficiency
    View Efficiency Graph

Communications & Management

  • Interface Port(s)
    Optional Simple Signalling RS232 cable , USB
  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating
    613Joules
  • Data Line Protection
    Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
  • Filtering
    Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous

Physical

  • Maximum Height
    250mm , 25.0CM
  • Maximum Width
    100mm , 10.0CM
  • Maximum Depth
    382mm , 38.2CM
  • Net Weight
    10.72KG
  • Shipping weight
    11.7KG
  • Shipping Height
    337mm , 33.7CM
  • Shipping Width
    225mm , 22.5CM
  • Shipping Depth
    487mm , 48.7CM
  • Color
    Black
  • Master Carton Units
    1.0
  • Pallet Dimensions
    46inches
  • Pallet Weight
    865.22lbs.
  • Units per Pallet
    30.0
  • SCC Codes
    1073130427959 1

Environmental

  • Operating Temperature
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-2952.6meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-14763.6meters
  • Audible noise at 1 meter from surface of unit
    45.0dBA

Conformance

  • Approvals
    A-tick, C-tick, CE, GS Mark
  • Equipment protection policy
    Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP
  • Standard warranty
    2 years repair or replace, 3 years repair or replace for European Union countries

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
