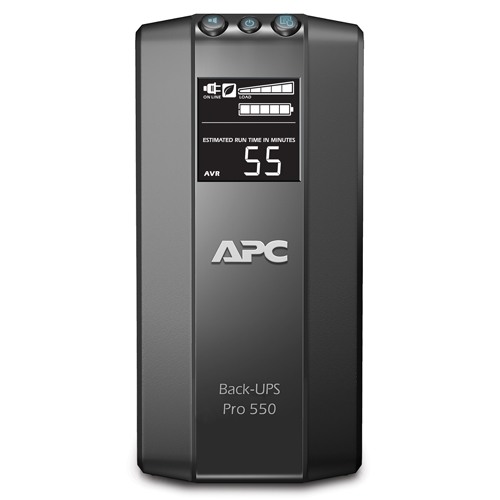

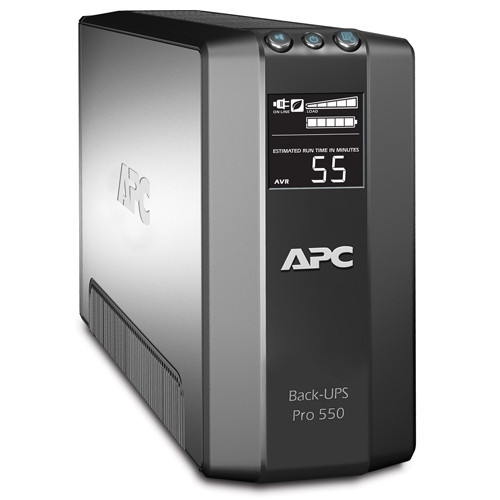

APC Power-Saving Back-UPS Pro 550

BR550GI

APC Power-Saving Back-UPS Pro 550

Includes: CD with software , USB cable , User Manual , Warranty card

Liên hệ
Hotline: 02437920828

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Hoàn 100% tiền nếu hàng không đúng như web

Output

  • Output power capacity
    330Watts / 550VA
  • Max Configurable Power (Watts)
    330Watts / 550VA
  • Nominal Output Voltage
    230V
  • Output Frequency (sync to mains)
    50 Hz
  • Topology
    Line Interactive
  • Waveform type
    Stepped approximation to a sinewave

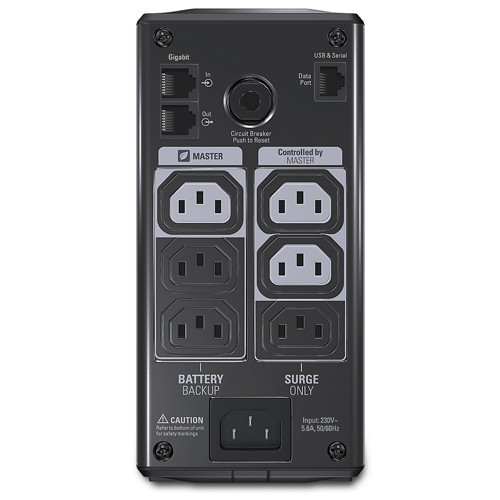

  • Output Connections
    (3) IEC 320 C13 (selector_surgetitle)
    (3) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
  • Transfer Time
    6ms typical : 10ms maximum

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C14
  • Input voltage range for main operations
    176 - 282V
  • Input voltage adjustable range for mains operation
    155 - 290V
  • Maximum Input Current
    6.0A

Batteries & Runtime

  • Battery type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time
    12hour(s)
  • Replacement Battery
    APCRBC110
  • Expected Battery Life (years)
    3 - 5
  • RBC Quantity
    1
  • Runtime
    View Runtime Graph
    View Runtime Chart
  • Efficiency
    View Efficiency Graph

Communications & Management

  • Interface Port(s)
    Optional Simple Signalling RS232 cable , USB
  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating
    420Joules
  • Data Line Protection
    Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
  • Filtering
    Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous

Physical

  • Maximum Height
    190mm , 19.0CM
  • Maximum Width
    91mm , 9.1CM
  • Maximum Depth
    310mm , 31.0CM
  • Net Weight
    6.53KG
  • Shipping weight
    7.71KG
  • Shipping Height
    252mm , 25.2CM
  • Shipping Width
    138mm , 13.8CM
  • Shipping Depth
    442mm , 44.2CM
  • Color
    Black
  • Master Carton Units
    2.0
  • Master Carton Weight
    15.94
  • Units per Pallet
    48.0
  • SCC Codes
    1073130426688 1

Environmental

  • Operating Temperature
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    45.0dBA

Conformance

  • Approvals
    A-tick, C-tick, CE, GOST, GS Mark
  • Equipment protection policy
    Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP
  • Standard warranty
    2 years repair or replace, 3 years repair or replace for European Union countries

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
